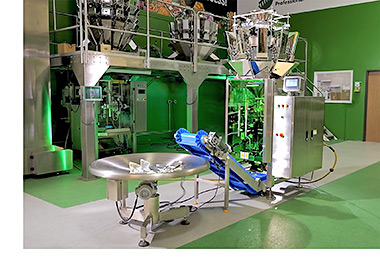

High Tek's Automatic Vertical Form Fill and Seal (VFFS) bagging equipment is capable of packaging just about any dry products in almost any bag type and back seal with ease. Equipped with a 7 inch Touch screen remote control an operator can easily switch between programs and bag types at the push of a button. Capable of 130+ Bags Per Min, Our Intermittent and continues baggers will take care of your bagging needs.
Our industrial bagging machines are capable of making all sorts of different style pillow bags with gusset and different seal types. The standard baggers are equipped to do a Fin seal, but we are also able to do Lap and Pinch Seals on most applications as well. We have found that our baggers are capable of running multiple different film types as well.
We carry a couple of bagging systems in inventory at all times however, most baggers are built to specification for the customer. On average we can get the project running production in under 18 weeks from start date.
Our VFFS packing machine come with the same 24-month warranty as our other equipment. Everything except water damage, neglect and wear items are covered under our 24-month warranty.
Vertical Form Fill Seal Bagger
VFFS Bagger Machine
Up to 130 bags per minute. Programmable Control System. Intermittent or Continous Motion. Warranties and Service Maintenance Programs available.
Specifications
- Intermittent or Continuous Motion Available
- Quick Changeover Film Roll and Former
- Printed & Non-Printer Film Compatible
- Control System: Programmable PLC base (Panasonic/Mitsubishi)
- Servo Motor or Pneumatic Driven Sealing Jaws Available
- Fil up to 130 BPM W/ Continuous Motion
- Dual Servo Motor Driven
- HMI:7" Color Touch Screen
- Compatible with the Majority of Date Code Equipment
- Variable PID Temperature Controls,
- Static Elimination Option Available
- Product Catcher Included
- Auto Web Tracking Feature
- Bag Deflator Option Available
- Material of Chassis: 304 Stainless Steet
- Power Voltage: 208 ~ 240 VAC IP
- Custom Sizes and Features Available Upon Request

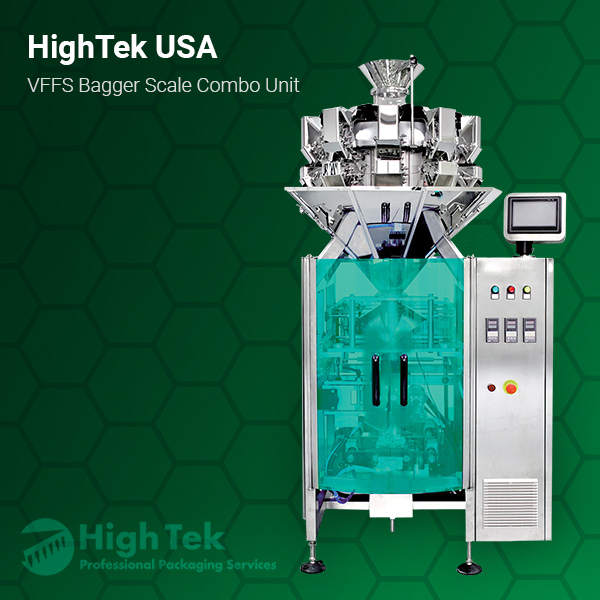

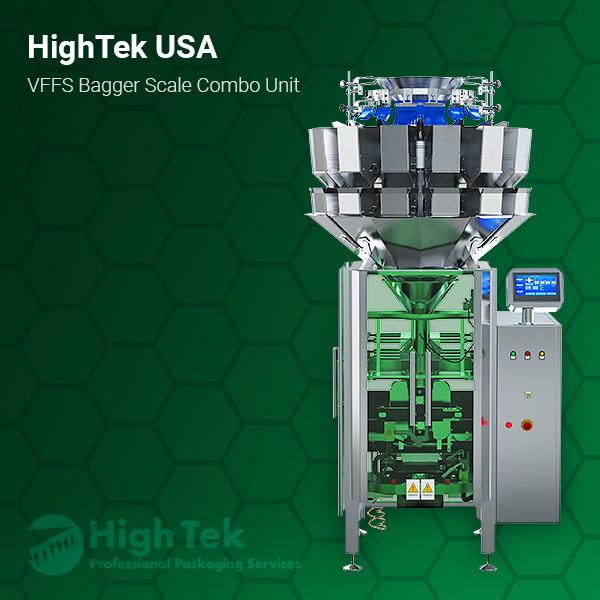

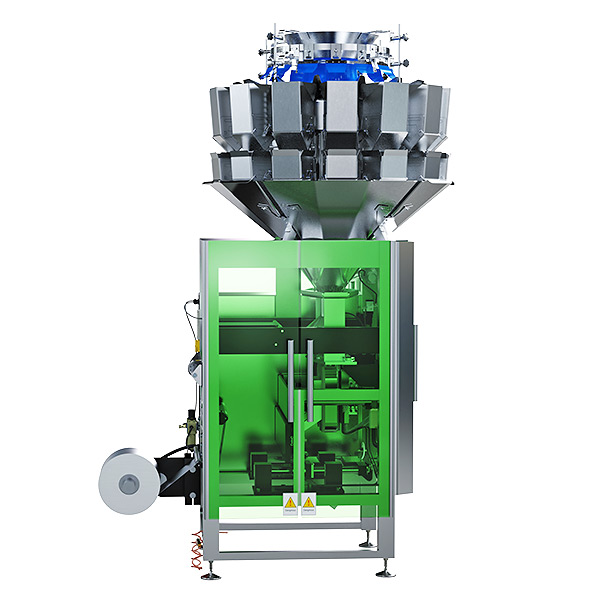

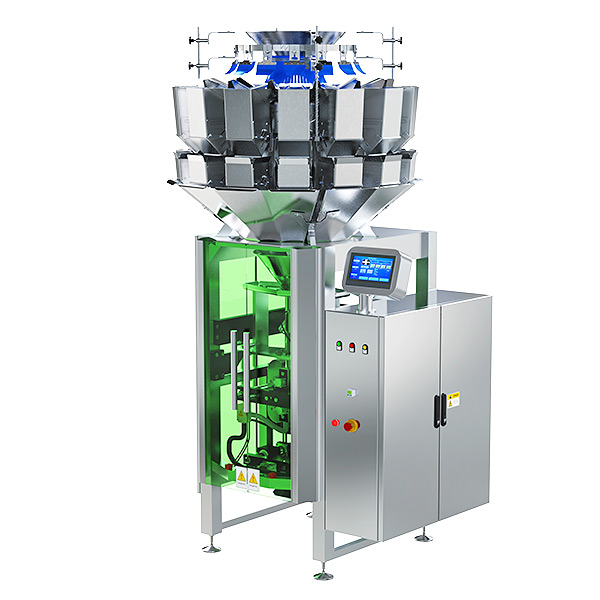

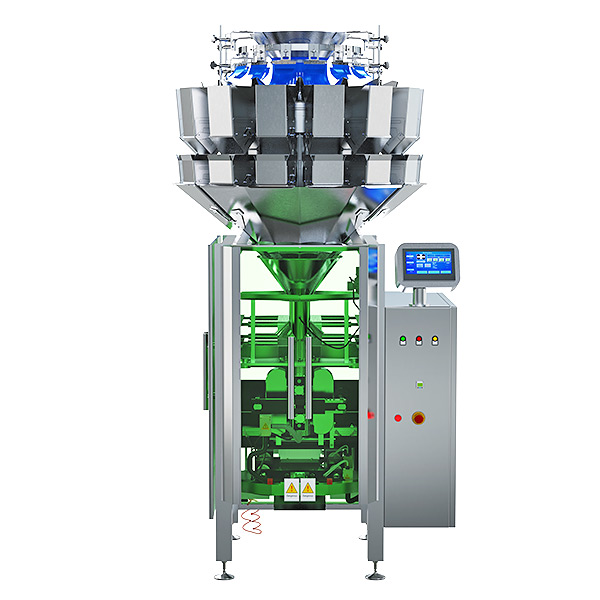

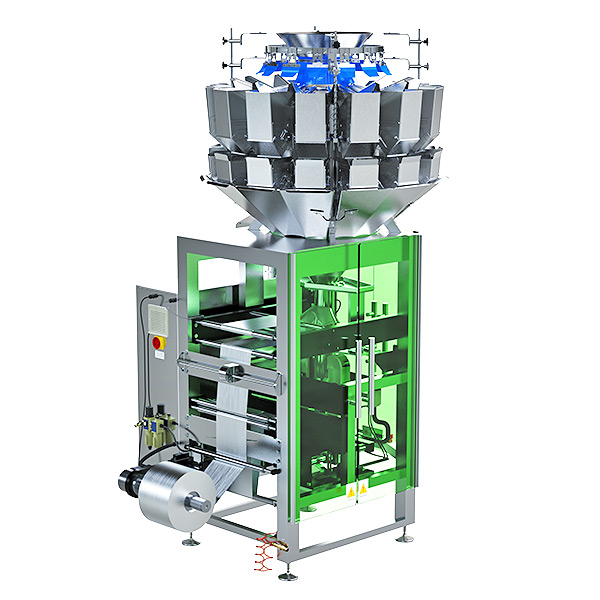

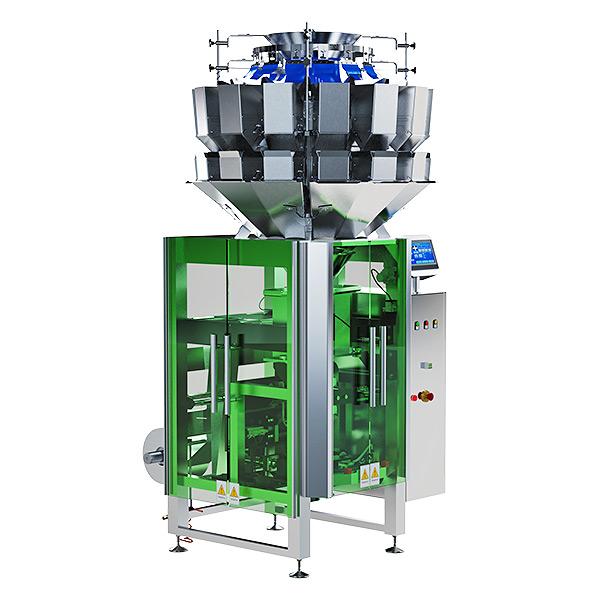

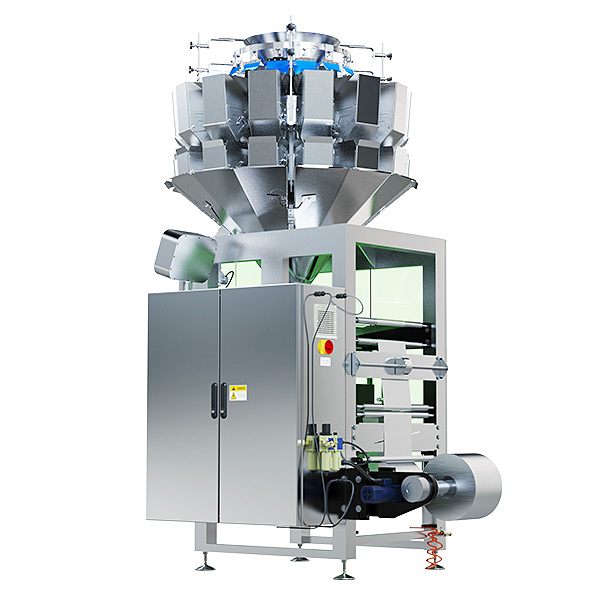

VFFS Bagger Scale Combo Unit
The VFFS Bagger Scale Combo Unit delivers world-class performance, precision, and versatility in a compact, integrated design. Built for speed, accuracy, and reliability, this system synchronizes perfectly with multiple dosing options to handle a wide range of products from granules and powders to liquids and pastes. Its user-friendly PLC touchscreen interface, servo-driven film system, and modular construction make operation and maintenance simple, while the customizable bag styles and advanced sealing technology ensure professional, consistent packaging results.
- World-class standard, perfect performance
- Installed with safety door to ensure operator protection
- PLC control with 7-inch color fast-feedback touchscreen
- Modular frame and remote electric box for easy maintenance
- Servo motor-driven dual belt film pulling system
- Fiber optics sensor for accurate eye-mark tracking
- Constant heat sealing by PID temperature controller
- Self-diagnose and error indication system
- Film-end alarm and stop
- Perfect synchronization with dosing machine, date printer, counter, and zipper device
- Customizable bag options: gusset, 3-side, 4-side, stand-up, or triangle
What It's Used For
- Various dosing systems available:
- Granule: volumetric cup filler, multi-head combination scale
- Powder: auger screw filler
- Liquid/paste: piston pump filler, magnetic pump filler, rotor pump filler
- Vibration counting device
- Works with heat-sealable laminate film
Options Available
- Nitrogen flush
- Hole punch
- Tear notch
- Standard pillow bag
- Three-sided or four-sided seal
- Flat bottom gusset
- Stick packs
- Zipper bag
Combo Unit Features
- Available in 10 or 14 heads
- 0.5-liter hopper size
- Dimpled or flat metal options
See the VFFS Bagger Scale Combo Unit In Action
